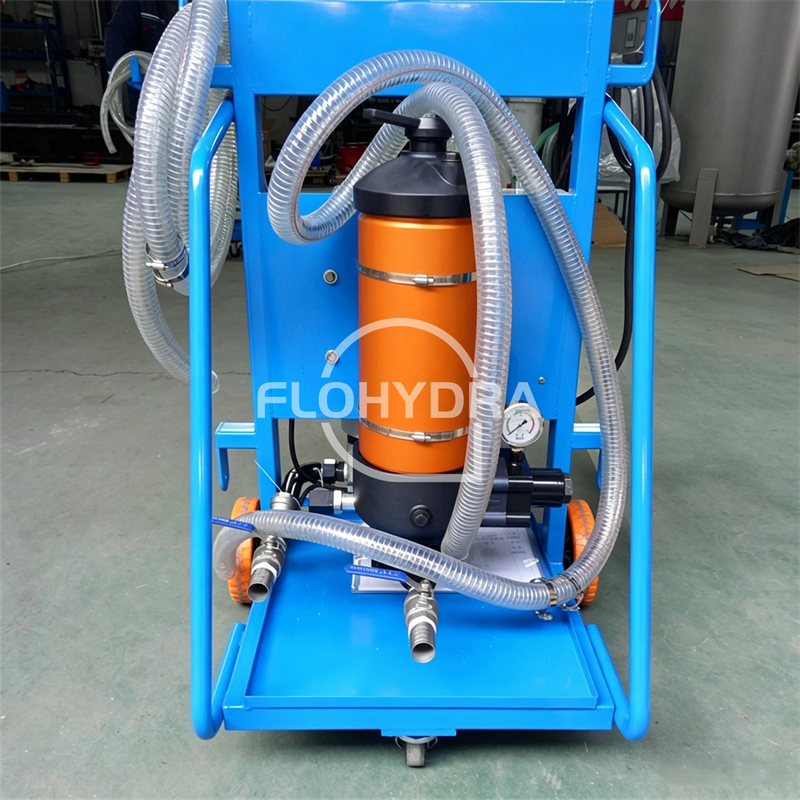

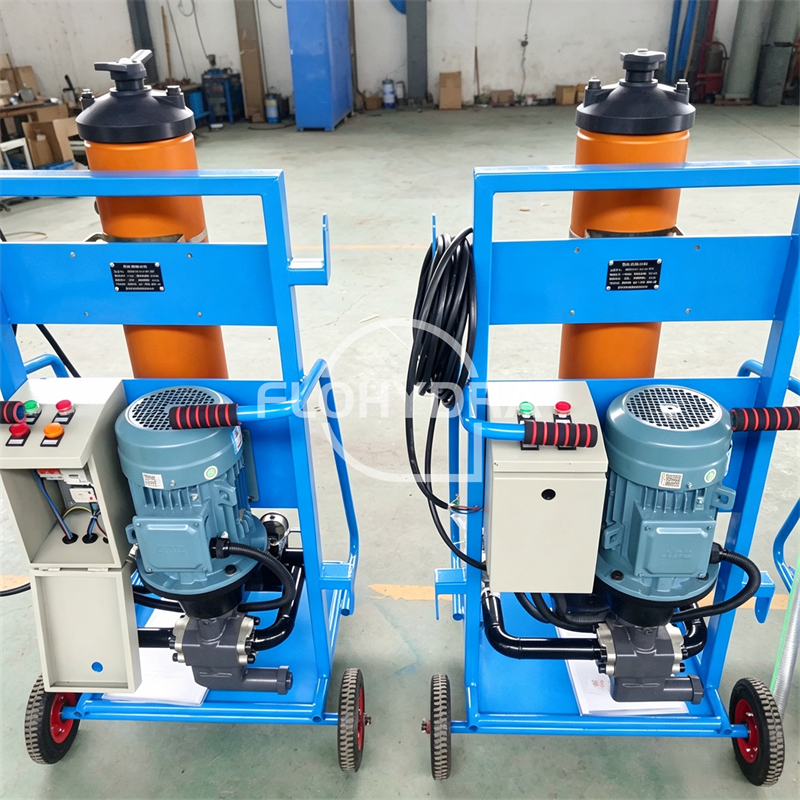

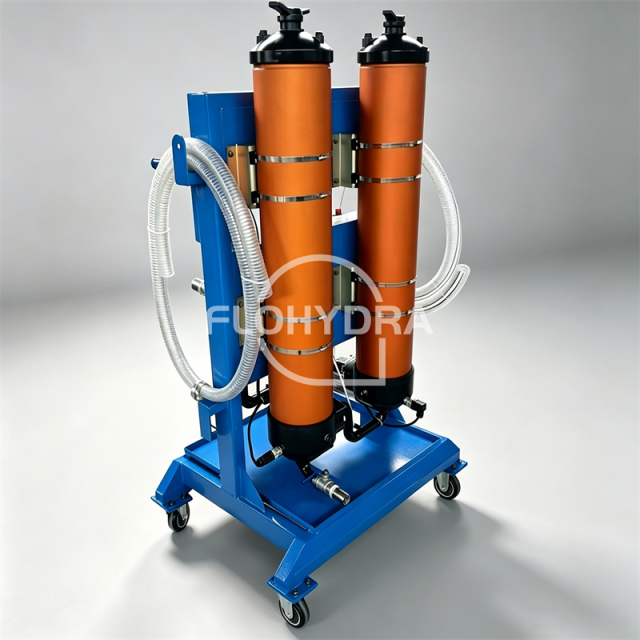

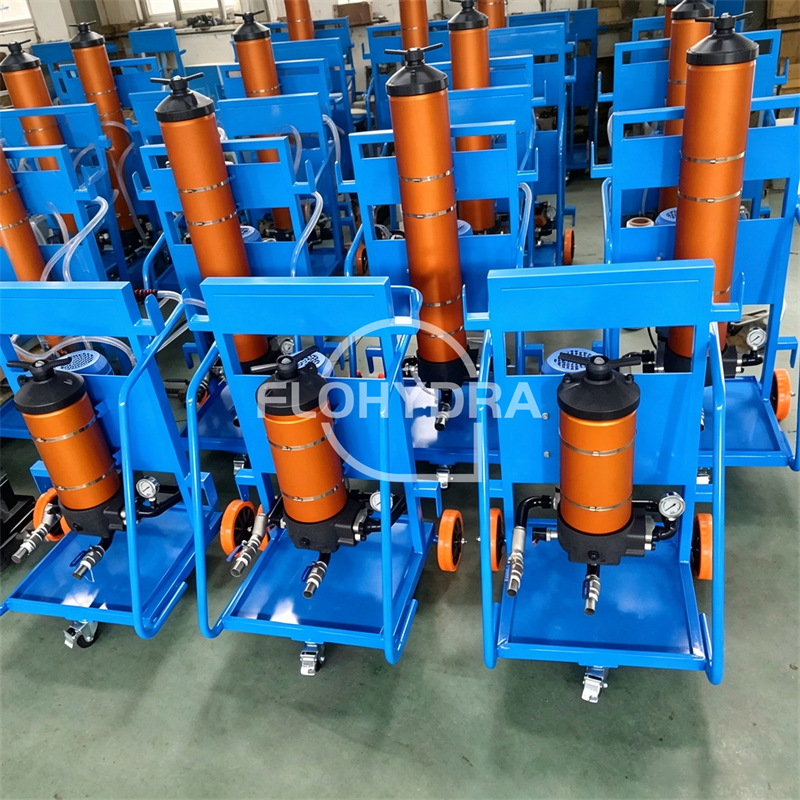

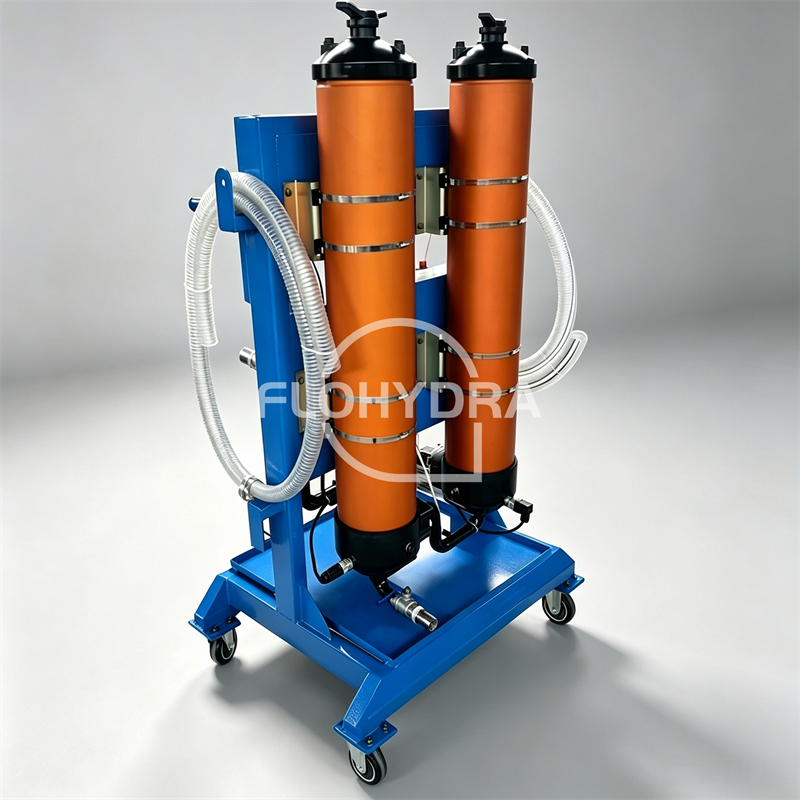

Flohydra Mobile Oil Purifier | Compatible Replacement for Pall PFC Series
Flohydra mobile oil purifier is a professional offline fluid purification device engineered as a high-compatibility alternative to the Pall PFC series. It effectively removes solid particulate contaminants from hydraulic oil, lubricating oil and various industrial liquid media. The flexible mobile structure supports convenient on-site deployment, widely applied for routine fluid maintenance in industrial hydraulic and lubrication systems.
Product Features
-
Equipped with a stable motor-driven pump unit, delivering steady flow with low noise and reliable self-priming performance for continuous operation.
-
Built-in pipeline overflow protection avoids system overpressure risks, ensuring safe equipment operation.
-
Thermal relay protection effectively reduces the possibility of motor damage caused by overload operation.
-
Front coarse filtration protects the pump body from large particle contamination and extends the service life of fine filter elements.
-
Adopts multi-stage graded filtration structure. Multiple filter precision options are available to meet different oil cleanliness standards.
-
Panel-mounted pressure gauge provides real-time monitoring of system operating status and filter contamination level.
-
Robust mobile frame with casters enables flexible transportation between workshop and field working sites.
-
Wide medium compatibility, suitable for mineral oil, water-glycol, emulsion and phosphate ester fire-resistant hydraulic fluid.
Technical Specifications
|
Item
|
Specification
|
|
Rated Flow
|
25L/min, 50L/min, 100L/min (optional)
|
|
Rated Working Pressure
|
1.0 MPa
|
|
Filtration Rating
|
βx(c)≥1000; 2.5μm, 5μm, 7μm, 12μm, 22μm optional
|
|
Applicable Media
|
Mineral oil, lubricating oil, water-glycol, emulsion, phosphate ester fire-resistant fluid
|
|
Working Temperature
|
0℃ ~ 80℃
|
|
Max Medium Viscosity
|
≤100 cSt
|
|
Power Supply
|
3-phase AC380V 50Hz
|
|
Motor Power
|
0.75kW / 1.5kW / 3.0kW (by flow rate)
|
|
Body Material
|
Carbon Steel
|
Product Applications
-
Oil filtration during new fluid filling for hydraulic and lubrication systems
-
Offline bypass purification for continuously operating industrial systems
-
Circulating filtration and system flushing before equipment commissioning
-
Independent oil purification and transfer without relying on host equipment pumps
Compatibility Statement
Flohydra mobile oil purifier is highly compatible with the working conditions and application scenarios of Pall PFC series purification equipment. It provides a stable and cost-effective alternative solution for industrial fluid maintenance.
Note: Flohydra products are replacement units, not original Pall genuine equipment.
