Flohydra Portable Oil Filter Unit | Replacement for Hydac OF7 Series

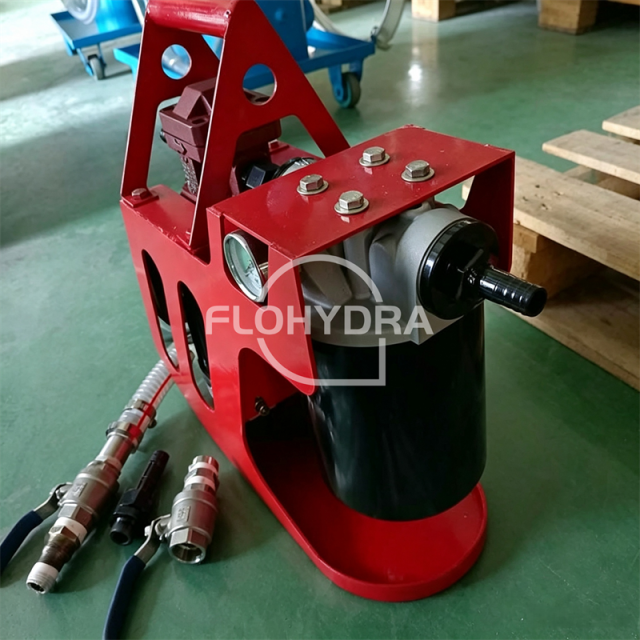

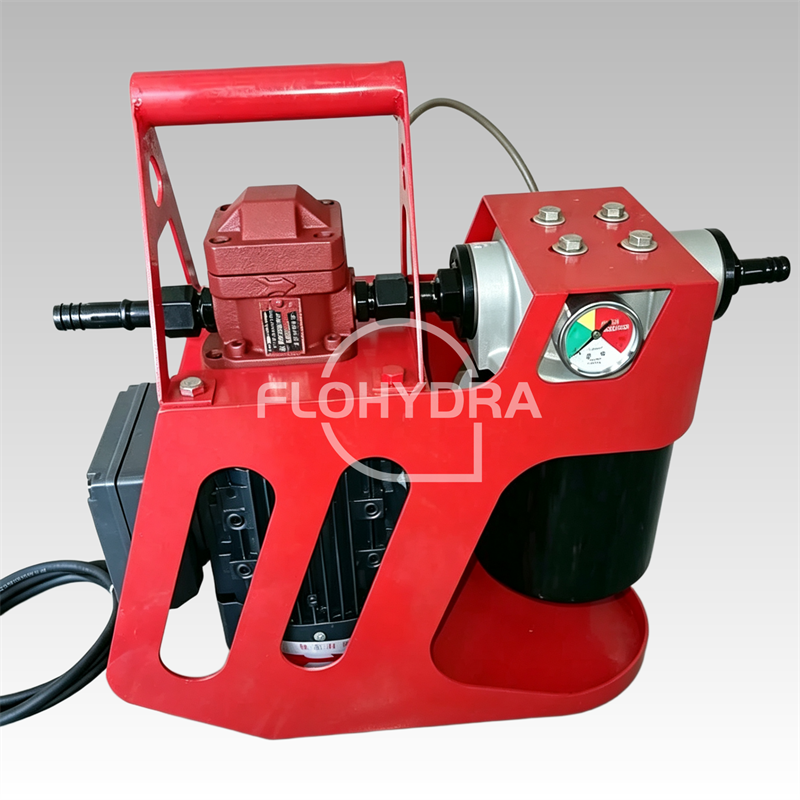

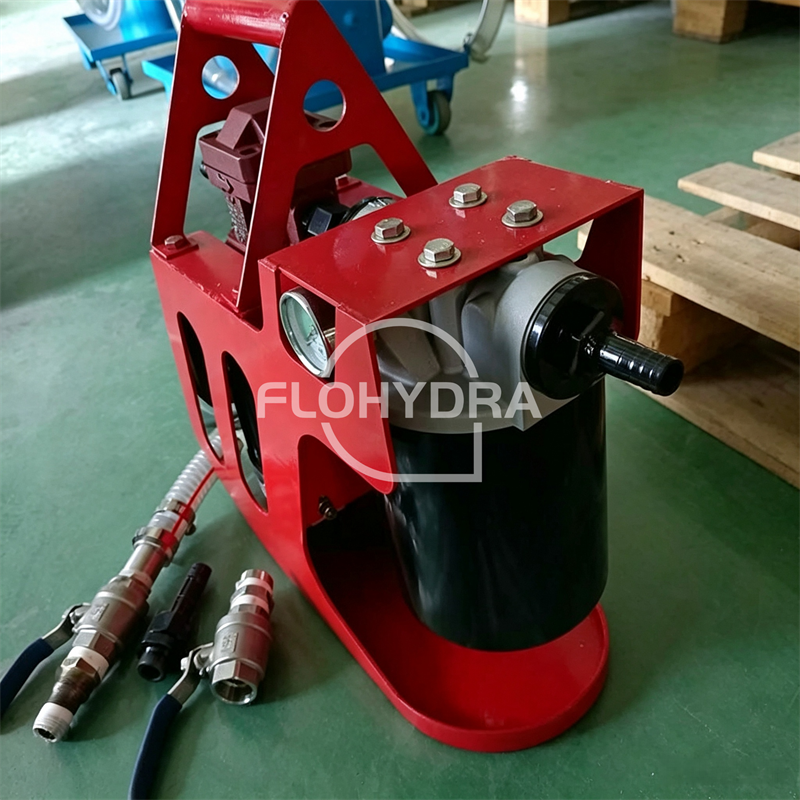

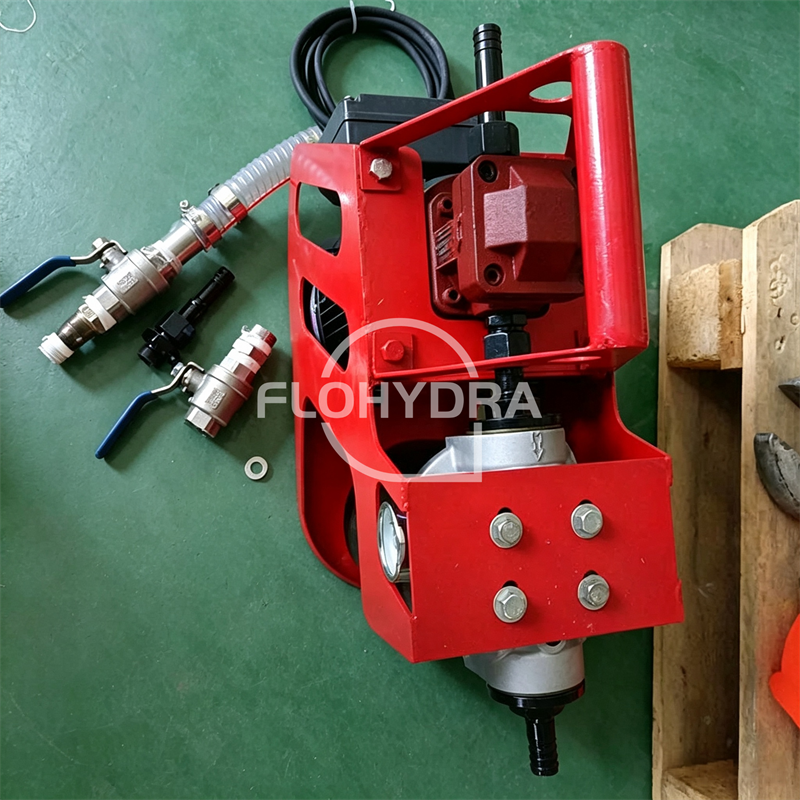

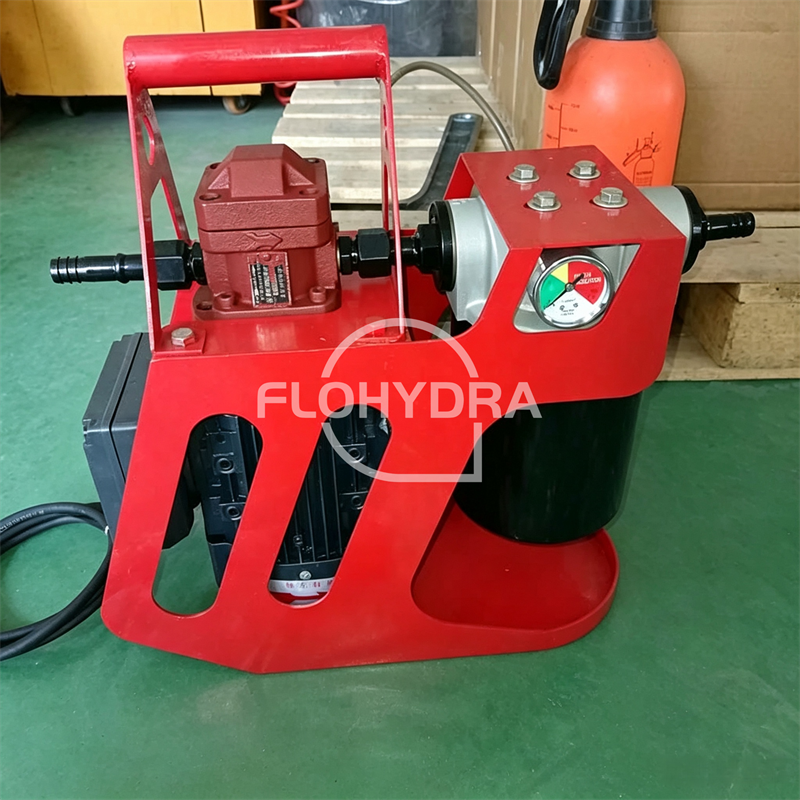

Flohydra portable oil filter unit is a compact and flexible offline filtration device, designed as a compatible alternative to the Hydac OF7 series mobile filter cart. It is widely used for daily maintenance, oil refilling, system flushing and bypass filtration of hydraulic and lubrication systems in various industrial equipment. Lightweight and portable, the unit allows flexible on-site movement and efficient oil contamination removal, helping stabilize system cleanliness and extend the service life of hydraulic components.
Product Features
-
Stable operation: Equipped with a motor-driven gear pump with low noise, stable operation and strong self-priming capacity.
-
Multi-protection design: Built-in pipeline overflow protection and thermal relay protection effectively reduce system and motor failure risks.
-
Dual-stage filtration: Inlet coarse filter protects the oil pump, and the fine filter improves overall oil cleanliness.
-
Tool-free maintenance: Quick-open housing structure allows fast filter replacement without professional tools.
-
Real-time monitoring: Panel pressure gauge intuitively reflects operating status and filter contamination degree.
-
Wide adaptability: Supports multiple filter media, wide temperature and viscosity range, suitable for diverse industrial oil fluids.
Technical Specifications
|
Item
|
Specification
|
|
Body Material
|
Carbon Steel / Stainless Steel
|
|
Filter Media
|
Fiberglass / Metal Mesh / Paper
|
|
Working Pressure
|
4.5bar – 16bar
|
|
Inlet Suction Pressure
|
-0.4bar ~ 0.6bar
|
|
Ambient Temperature Range
|
-20℃ ~ 40℃
|
|
Fluid Temperature Range
|
-10℃ ~ 80℃
|
|
Viscosity Range
|
15mm²/s – 800mm²/s
|
|
Oil Cleanliness Level
|
NAS 5-6 Class
|
|
Hose Length
|
3m
|
|
Hose Inner Diameter
|
Suction hose 30mm, Outlet hose 25mm
|
|
Flow Rate
|
30L/min – 100L/min (optional)
|
Product Applications
-
Oil filling filtration for hydraulic and lubrication systems
-
Online bypass filtration for operating industrial systems
-
Circulating purification and flushing before equipment commissioning
-
Independent oil filtering and transfer without relying on original equipment pumps
Compatibility Statement
This Flohydra portable filter unit is highly compatible with the application scenarios of Hydac OF7 series filter carts. It is a cost-effective and stable alternative solution for industrial fluid maintenance.
Note: All Flohydra products are non-OEM replacement parts, not original Hydac genuine products.
