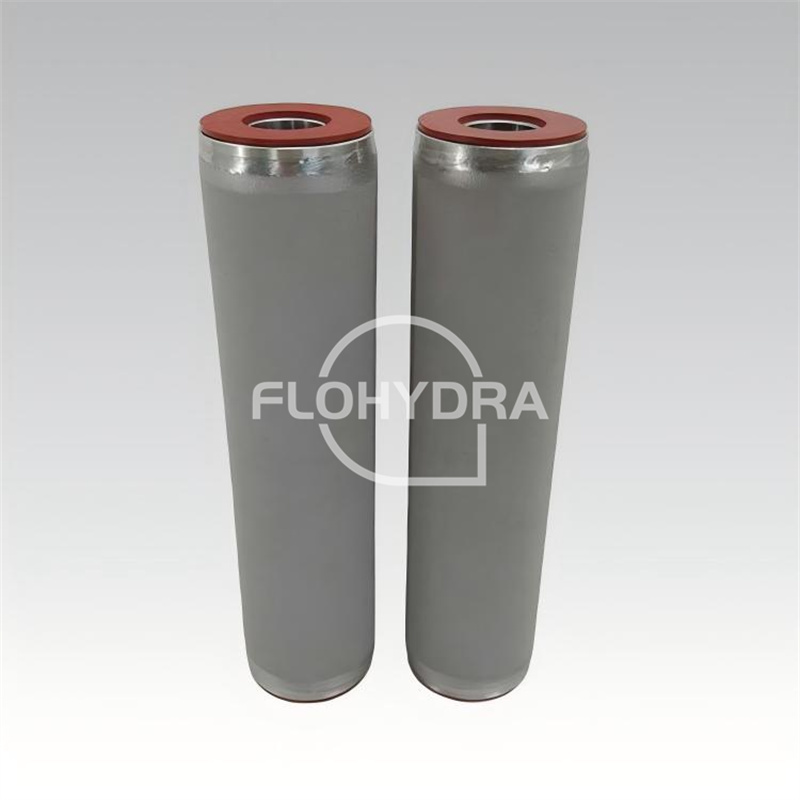

Flohydra MBS1001PHH Stainless Steel Powder Sintered Filter Element For Pall

Sintered metal powder filter elements are manufactured from metal powder without binders, through cold isostatic pressing and vacuum sintering. By adjusting particle size and process parameters, pore size and distribution can be precisely controlled to meet specific user requirements.

In terms of filtration performance, these elements enable micron-level precision, effectively removing solid contaminants from liquids or gases. Impurities are retained on the surface as filter cake, while clean fluid passes through, restoring contaminated fluids to production-ready cleanliness and protecting downstream equipment.

Another key advantage is their regenerability. Unlike non-metallic sintered filters, metal powder filters offer high mechanical strength, allowing for backwashing or back-blowing when the filter cake builds up, thus enabling reuse.

Among various metal options, stainless steel versions (grades 304, 304L, 316, and 316L) are particularly widely used. They are produced through sieving, forming, and sintering, forming microporous structures with excellent corrosion resistance, oxidation resistance, abrasion resistance, and good mechanical properties.

Performance Features:

1. Excellent filtration performance;
2. Stable shape and high mechanical strength;
3. Excellent temperature resistance, capable of operating continuously at up to 900°C;
4. High strength and good resistance to alternating loads;
5. Good permeability and efficient gas-solid separation;
6. Excellent backwashing performance, allowing easy regeneration and repeated use.

Technical Specifications:

Connection Types:

1. Standard connections (222/220/226)
2. Quick-connect couplings
3. Threaded connections
4. Flange connections
5. Tie-rod connections
6. Custom connections

Applications:

1. Petrochemical industry: High-temperature gas filtration (including fluidized bed tail gas and catalytic cracking slurry), as well as filtration and separation of high-temperature corrosive liquids and catalysts;
2. Metallurgical industry: High-temperature flue gas purification;
3. Pharmaceutical industry: Catalyst filtration and separation;
4. Chemical fiber and film industry: Polymer melt filtration and purification;
5. Food industry: Filtration of edible oils, beverages, and various slurries;
6. Environmental protection & water treatment: Production wastewater purification and treatment;
7. Other applications: High-pressure backwash oil filters, gas distribution plates and fluidized bed orifice plate materials, and general filtration for various high-temperature gases and liquids.

   FAQs

   Q: Are you a manufacturer?
   A: Yes, we are a factory-direct supplier.

   Q: What types of filter elements do you manufacture?
   A: We produce a wide range of filter elements, including hydraulic filters, air filters, air compressor filters, water filters, sintered stainless steel filters, as well as oil purifiers and related equipment.

   Q: Do you offer custom filter elements?
   A: Yes, we support OEM and ODM services. We can design filter elements to meet your requirements based on specified size, material, and structure, or manufacture according to your drawings.

   Q: What is your production lead time?
   A: For samples or small orders, it typically takes 5–7 working days; for bulk orders, it is generally 12–15 working days.

   Q: What is your warranty period?
   A: Our standard warranty period is 12 months.This means under normal installation and use.In this case, if quality issues arise, we will reproduce the product free of charge.

   Q: What are your shipping methods?
   A: We support express shipping (DHL/FEDEX/UPS), air freight, and sea freight. If you have a long-term freight forwarding partner, we can arrange delivery to their warehouse.
