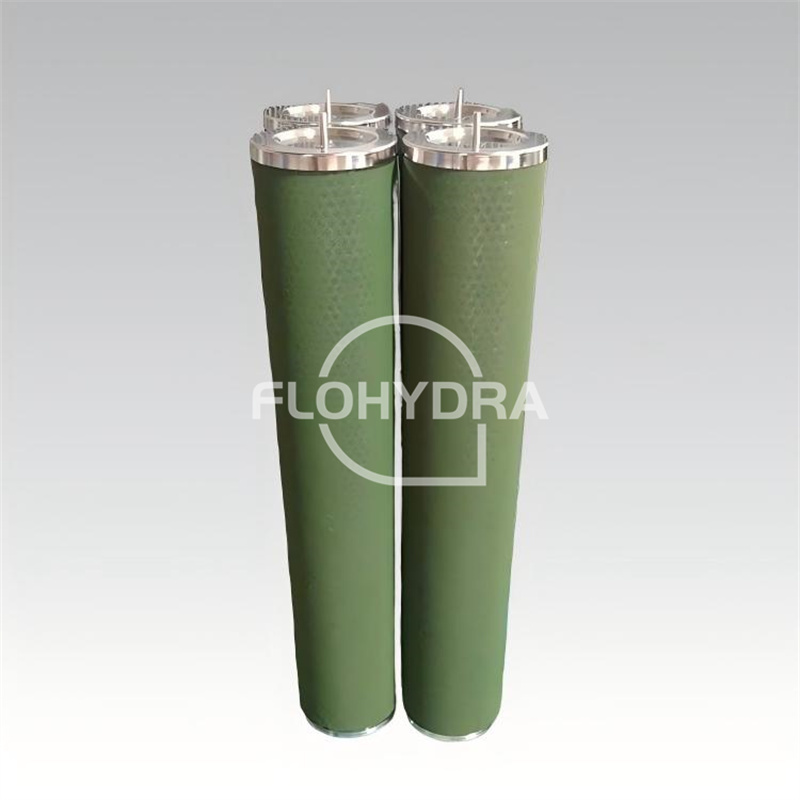

Flohydra LSS2F2H Replacement Separator Filter Element For Pall

The coalescer and separator elements are specifically designed for oil-water separation systems, suitable for treating oil-water mixtures, suspensions, and emulsions.
The operating sequence within the system consists of five stages: solid-liquid separation → demulsification → coalescence → separation → adsorption. A higher ratio of coalescing elements to separating elements improves coalescence efficiency and accelerates the separation rate.

Coalescer & Separator – Principle of Operation

The coalescer & separator is engineered for liquid-liquid separation and incorporates two primary elements: a coalescing element and a separating element.

Coalescing Stage
Oil enters the coalescing element, where solid particulates are retained and micron-sized water droplets are coalesced into larger globules. Most enlarged globules settle by gravity into the collection sump and are discharged via the drain valve.

Separation Stage
The oil then passes through the separating element. With oleophilic and hydrophobic media, the element allows oil to pass freely while repelling residual water, which collects in the sedimentation tank and is drained. Clean, water-free oil exits the outlet.

Differential Pressure Monitoring
As contaminants accumulate on the filter elements, differential pressure rises. When it reaches 0.15 MPa, the coalescing element is clogged and requires replacement.

Performance Features

Easy Installation – Simple assembly and disassembly for quick, labor-saving maintenance.

High Dirt-Holding Capacity – Multi-layer media with uniform pleating extends service life.

Robust Construction – Sturdy inner core delivers high strength and reliable pressure resistance.

Efficient Filtration – Low flow resistance and high flow rate support large-volume applications.

Reliable Precision – Effective removal of fine particulates ensures system cleanliness.

Applications

Hydraulic and lube oil filtration for industrial machinery

Liquid purification, separation, and recovery in processing industries

Compressed air treatment and oil/water removal

Pre-filtration for water treatment and pharmaceutical processes

Filtration for power generation, railway, marine, and heavy-duty vehicles

Related Models – You May Also Need

FAQs

Q: Are you a manufacturer?
A: Yes, we are a factory-direct supplier.

Q: What types of filter elements do you manufacture?
A: We produce a wide range of filter elements, including hydraulic filters, air filters, air compressor filters, water filters, sintered stainless steel filters, as well as oil purifiers and related equipment.

Q: Do you offer custom filter elements?
A: Yes, we support OEM and ODM services. We can design filter elements to meet your requirements based on specified size, material, and structure, or manufacture according to your drawings.

Q: What is your production lead time?
A: For samples or small orders, it typically takes 5–7 working days; for bulk orders, it is generally 12–15 working days.

Q: What is your warranty period?
A: Our standard warranty period is 12 months.This means under normal installation and use.In this case, if quality issues arise, we will reproduce the product free of charge.

Q: What are your shipping methods?
A: We support express shipping (DHL/FEDEX/UPS), air freight, and sea freight. If you have a long-term freight forwarding partner, we can arrange delivery to their warehouse.
