Description

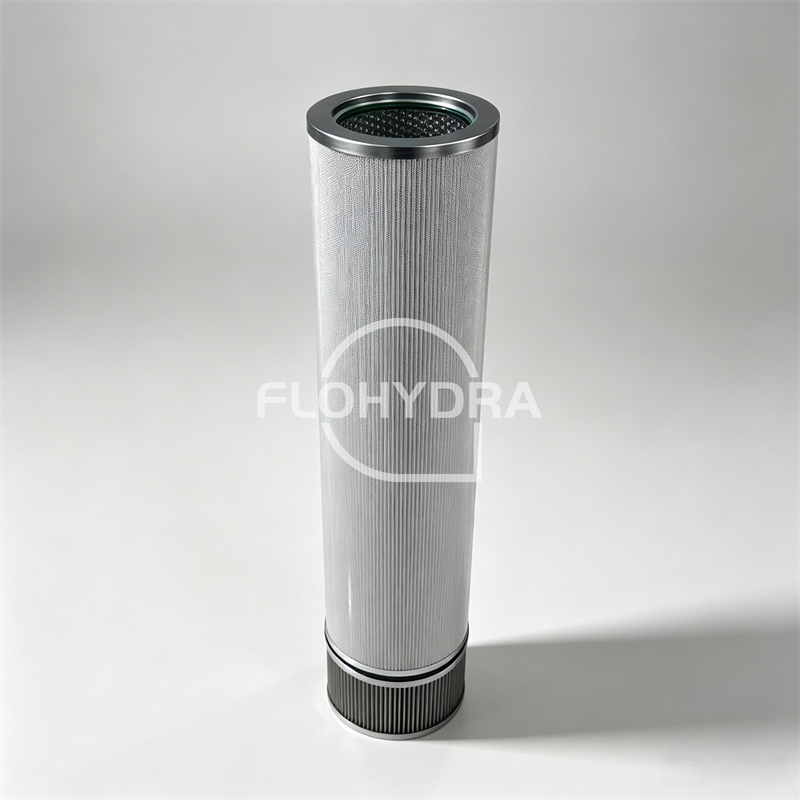

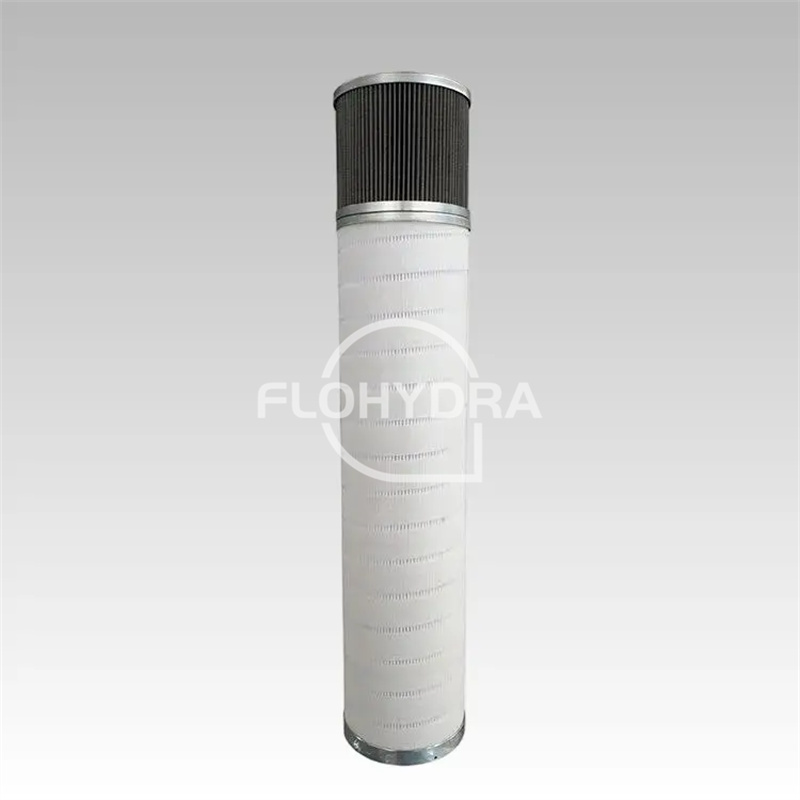

Wind Turbine Gearbox Filter Elements

Wind turbine gearbox filter elements serve wind power generator hydraulic and lubrication systems. Different from ordinary filters, they feature an embedded stainless steel mesh. When filter clogging triggers the bypass valve, the steel mesh retains basic filtration, minimizing equipment wear and extending service life.

It adopts a dual-stage filtration structure: 10μm imported glass fiber for precise primary filtration and 50μm stainless steel mesh for secondary protection. Customizable layered structure delivers high pressure resistance, accurate concentricity and durable, burr-free metal construction.

Ideal for wind turbine closed-loop hydraulic systems, it effectively filters metal wear particles and rubber impurities in hydraulic oil, maintaining oil cleanliness and protecting core hydraulic components.

With no dirt accumulation groove, it removes all trapped contaminants thoroughly during replacement without secondary oil tank pollution. Full-flow return filtration eliminates various internal and external impurities, ensuring stable and reliable system operation.

Technical Parameters

Applicable Media: General hydraulic oil, phosphate ester hydraulic oil, emulsion, water-glycol fluid

Filter Materials: Imported filter media including American LYDALL, American HV, Korean Ahlstrom & AK, German HV and J.C.Binzer glass fiber, as well as stainless steel woven mesh

Filtration Precision: 1μm - 100μm

Working Pressure: 21bar - 210bar

Working Temperature: -30℃ to +100℃

Recommended Wind Turbine Filter Element Models

Replacement for HYDAC wind turbine filter elements: 1300 R 010 BN4HC/-B4-KE50, 1300R010BN4HC/-B4-KE50, 2600 R 010 BN4HC/-B4-KE50, 2600R010BN4HC/-B4-KE50

Replacement for INTERNORMEN wind turbine filter elements: 01.NR 1000.6VG.10.B.V.-, 01.NR 1000.32227.10VG.25G.25.B.V.-.S1

Replacement for Microfiner wind turbine filter elements: MEH1449RNTF10N/M50, WH1449RNTF10/M50 MEH1492RNTF10N/M50, WH1492RNTF10/M50

Replacement for Dongfang Turbine wind turbine filter elements: FD70B-602000A014, FD70B-602000A015, FD70B-602000A016

Replacement for PALL wind turbine filter elements: HC8300FKS39H-YC11, WH8300FKS39H, HC8300FKS24H-YC11B, WH8300FKS24H

Replacement for HAWE wind turbine filter elements: 7953 831-F10 6195 4006-00, 7953 834-F10 6195 4006-00

Replacement for PuAo wind turbine filter elements: PA25/H80V10-1

Replacement for Rexroth wind turbine filter elements: 65.1300H10XL/G40-000-B4-M, 65.2600H10XL/G40-000-B4-M

Replacement for MAHLE wind turbine filter elements: H 1300 RN 2 010/SONDER WK, H1300RN2010/SONDERWK, H 2600 RN 2 010/SONDER WK, H2600RN2010/SONDERWK

Replacement for PUREACH wind turbine filter elements: RPI8300F1030H, RP143922F1036H, RP143483F1018H, RP8300F1039H-YC11, RP8300F1030H-YC11
