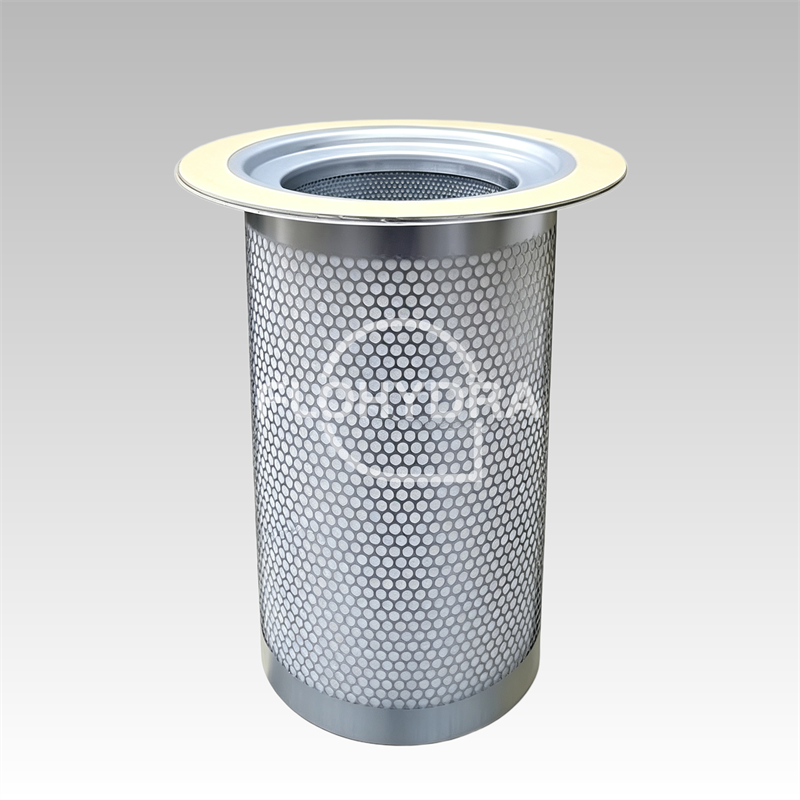

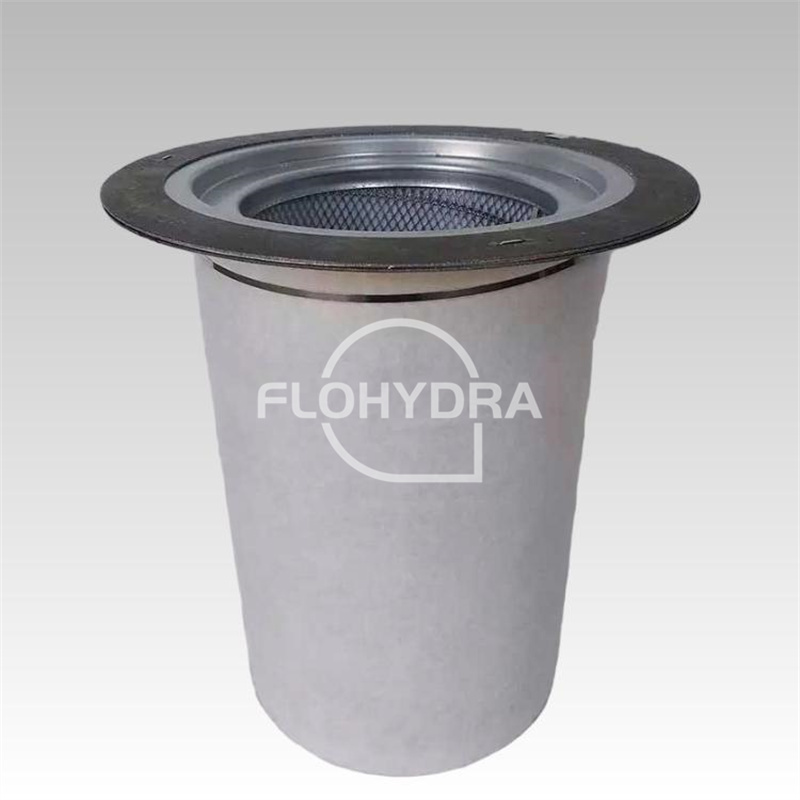

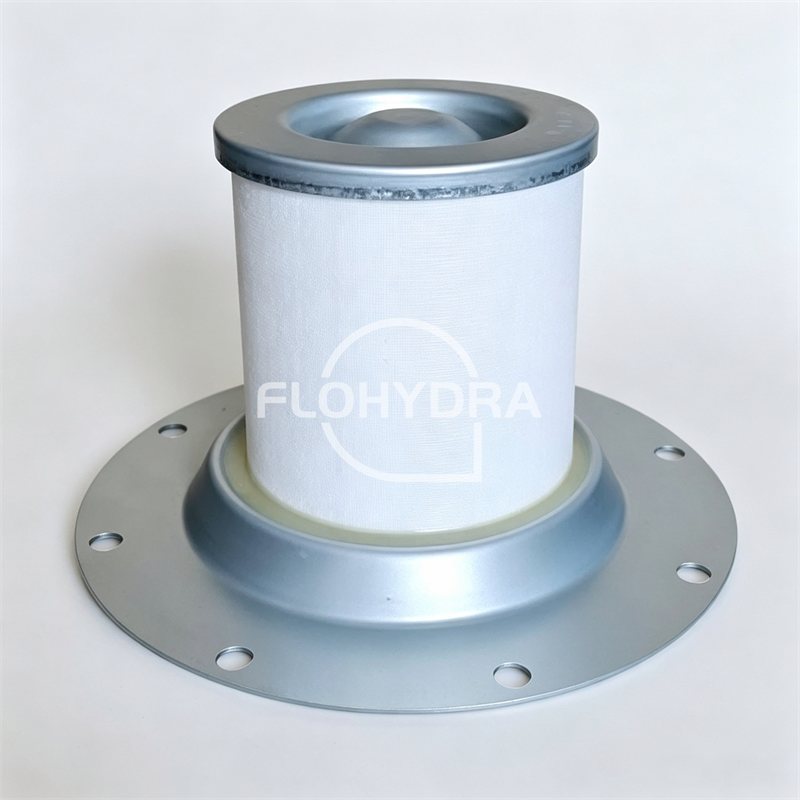

Flohydra 02250061-137 Replacement Primary Oil-Air Separator Element For Sullair

The oil separation element is key to compressed air quality in air compressors. A high-quality element ensures efficient operation and a filter life of thousands of hours. Compressed air from the compressor head contains oil droplets; large ones are easily separated in the tank, while fine particles (below 1 micron) must pass through a fiberglass filter layer. Through diffusion, interception, and inertial impaction, these fine mists coalesce into larger drops, which settle at the bottom and return to the lubrication system via the return line.

Solid particles trapped in the filter gradually increase pressure differential. When the differential reaches 0.08–0.1 MPa, or when oil carryover becomes visible, the element must be replaced; otherwise, operating costs rise.

Performance Specifications:

Media: General hydraulic oil, phosphate ester hydraulic oil, emulsion, water-glycol, fire-resistant fluid

Filtration Accuracy: 1μm – 100μm

Operating Pressure: 21 bar – 210 bar

Operating Temperature: -30°C – +110°C

Sealing Material: Fluororubber (FKM) O-rings, Nitrile (NBR) O-rings

Installation Method for Built-in Oil Separator Element:

1.Stop the compressor, close the outlet valve, open the drain valve, and verify that the system is fully depressurized.

2.Disconnect the piping above the oil tank and remove the line from the pressure maintenance valve to the cooler.

3.Remove the oil return line and check that it is clear of obstructions.

4.Remove the bolts securing the top cover of the oil tank and lift off the cover.

5.Take out the old separator element and install the new one.

6.Do not remove the staples on the flange gasket—they serve as the static-conducting device.

7.Reassemble all components in the reverse order of disassembly.

8.Open the compressor outlet valve before starting up and performing test runs.

Installation Method for External Oil Separator Element:

Stop the compressor, close the outlet valve, open the drain valve, and ensure the system is depressurized. Then simply remove the old separator element and install the new one.

Applications:

Power: Turbine oil, fire-resistant fluid, seal oil, compressors, dryers, and cooling water systems.

Steel: Lubrication and filtration in ironmaking, steelmaking, continuous casting, and rolling.

Machinery: Paper, mining, injection molding, precision equipment, and dust recovery.

Automotive & Engineering: Air, oil, fuel, hydraulic, and water filters for engines, ships, and trucks.

Electronics & Pharma: RO water, deionized water, cleaning fluids, and glucose pretreatment.

Petrochemical: Product separation/recovery, oilfield injection water, and natural gas filtration.
